Bộ điều khiển JUMO 701160/8-0153-001-23-06

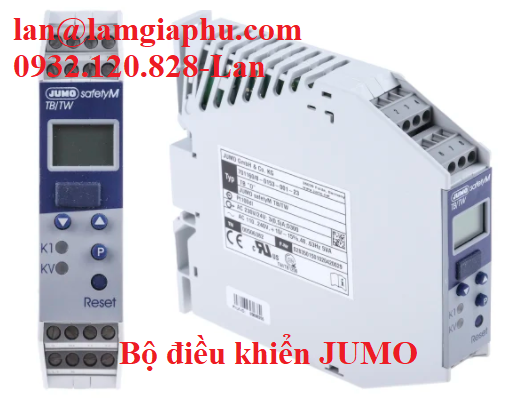

JUMO safetyM TB/TW – temperature limiter/ Temperature monitor to DIN EN 14 597. Programmable: 701160/8-0153-001-23-064 TN 00506382. Type: Temperature limiter (TB)/temperature monitor (TW). Configuration default setting. Basic type extension temperature limiter (iniverse). Analog input 1: Pt100 (3-wire). Voltage supply: AC 110…240V +10/-15%, 48…63 Hz. Approvals with DIN-and UL-approval.
Thông số kỹ thuật:
Attribute Value
Output Type : Relay
Supply Voltage: 110 → 240 V ac
Size : 22,5 x 109mm
Number of Inputs : 1
Number of Outputs: 2
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +55°C
Control Type: ON/OFF
Communication Module Available: No
Display Type: LC
IP Rating: IP20
Series: safetyM TB/TW
Input Type: PT100
Panel Depth: 124,8mm
Display Colour: Monochrome
Termination Type: Screw
