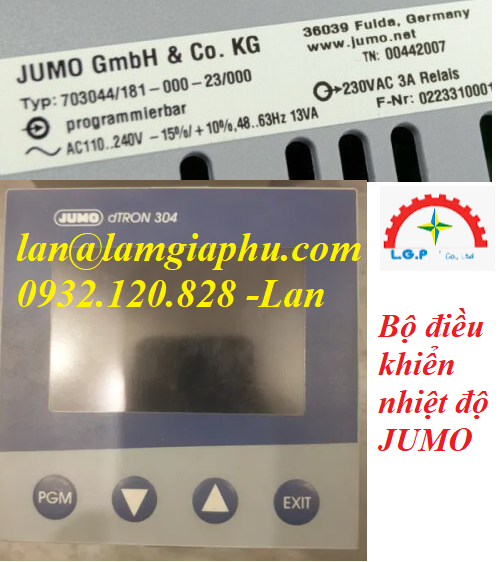

Bộ điêu khiển nhiệt độ JUMO 703044/181-000-23/000 TN 00442007
JUMO Type dTRON 304 (96×96 mm) 1 analog and 2 logic inputs,
2 relays and 2 logic outputs, supply voltage for 2-wire-transmitter
Basic type extension basic type
Version standard with default settings
Logic outputs 2 x 0/12V
Slot 1 not to be used
Slot 2 not to be used
Slot 3 not to be used
Voltage supply AC 110 to 240V +10/-15%, 48 to 63 Hz
Approvals with UL-approval
Front foil JUMO 703044
Please take note of the following:
– Where applicable, only “make/opener” are available instead of “changeover”
– Terminal assignment and designation deviates.
– The controller is delivered with standard settings.
– Configuration must be adapted to operation.
– Controller parameters must be optimized for the control loop.
For details and technical comparison see enclosed data sheet.
This require professional electronic engineer to exchange the controller
JUMO 703041/181-000-23/000,061-200…+850 ℃ Pt100 70/00441973
703041/181-400-23/000,061-200…+850 ℃ Pt100 70/00441999
703041/181-000-23/000,061-200…+850 ℃ Pt100 70/00442003
703041/181-400-23/000,061-200…+850 ℃ Pt100 70/00442004
703041/181-000-23/000,061-200…+850 ℃ Pt100 70/00442005
703041/181-400-23/000,061-200…+850 ℃ Pt100 70/00442006
703041/181-000-23/000,061-200…+850 ℃ Pt100 70/00442007
703041/181-000-23/000,061-200…+850 ℃ Pt100 70/00442008
Programmable regulator JUMO dTRON 304/308/316 (70.3041)
