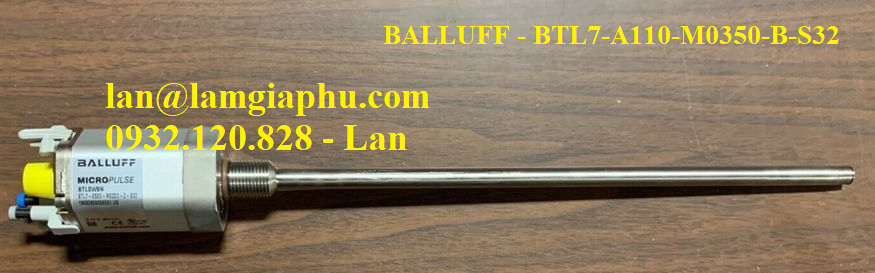

Cảm biến Balluff BTL06WL Type: BTL7-A110-M0350-B-S32
ĐẶC TÍNH KỸ THUẬT:
Balluff BTL06WL
Style: Rod series
Fastening detail: Threaded flange M18x1.5
Housing material: Aluminium, Anodized
Magnets, number max.1
Connection: Connector, M16x0.75, 8-pin
Analog output: Analog, voltage 0…10 V Analog, voltage 10…0 V
Measuring range: 150 mm
Sampling frequency max. : 4000 Hz
Non-linearity max. : ±50 µm
Repeat accuracy: ± 10 µm
Operating voltage Ub: 20…28 VDC
Ambient temperature: -40…85 °C
IP rating per IEC 60529: IP67
Cảm biến BALLUFF Model chuyên sử dụng
| BTL39EW | BTL7-A501-M0102-P-SA442-S32 |
| BTL39E6 | BTL7-E500-M3000-B-SA466-S115 |
| BTL39C7 | BTL7-E500-M0750-B-DEXA-SA416-KA15 |
| BTL39AK | WOODMIZER 038694 |
| BTL39AJ | BTL7-E500-M4200-K-K00,3-ZA15 |
| BTL3982 | BTL7-E513-M0600-P-KA02-S32 |
| BTL3979 | BTL7-C501-M2250-P-KA02-S32 |
| BTL3978 | BTL7-E500-M0680-B-SA42-KA02 |
| BTL3977 | BTL7-E500-M3450-B-SA42-KA02 |
| BTL3976 | BTL7-E500-M0500-B-SA42-KA02 |
| BTL3969 | BTL5-T110-M1000-J-DEXC-TA12 |
| BTL395T | BTL7-E100-M0300-H-SA262-FA02 |
| BTL395P | BTL7-S512-M4500-B-SA359-S32 |
| BTL3957 | BTL6-U101-M1750-PF-SA426-S4 |
| BTL3942 | BTL6-U101-M2350-PF-SA426-S4 |
| BTL390Y | BTL6-U101-M1900-PF-SA426-S4 |
| BTL390E | BTL5-T110-M0300-J-DEXC-TA12 |
| BTL38ZY | BTL7-P511-M0300-P-KA01-S32 |
| BTL38Y9 | BTL7-E500-M0350-B-SA431-S32 |
| BTL38Y7 | BTL7-E570-M1575-J-M01-TA |
| BTL38TT | BTL6-E500-M2100-PF-SA401-S115 |
| BTL38RN | BTL7-A100-M0380-H-SA262-KA05 |
| BTL38RM | BTL7-E500-M0660-B-SA431-S32 |
| BTL38RL | BTL7-E500-M0550-B-SA431-S32 |
| BTL38PZ | BTL6-U101-M3950-PF-SA426-S4 |
| BTL38PY | BTL6-U101-M3790-PF-SA426-S4 |
| BTL38PW | BTL6-U101-M3710-PF-SA426-S4 |
| BTL38PU | BTL6-U101-M3470-PF-SA426-S4 |
| BTL38PT | BTL6-U101-M3390-PF-SA426-S4 |
| BTL38PR | BTL6-U101-M1950-PF-SA426-S4 |
| BTL38N7 | BTL7-P511-M0910-BN-SA330-KA15 |
| BTL38N6 | BTL7-P511-M0310-BN-SA330-KA10 |
